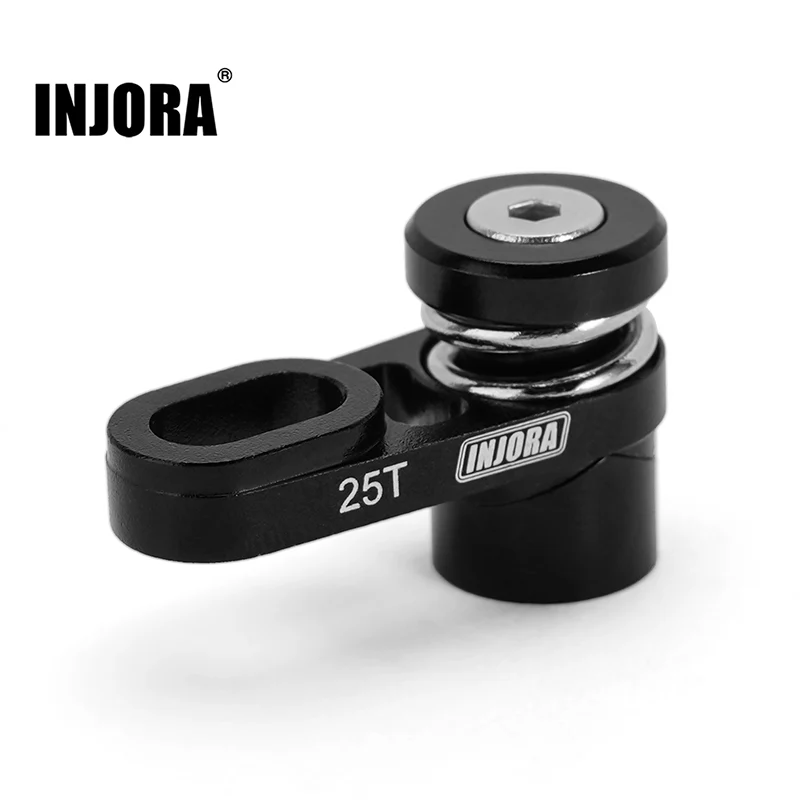

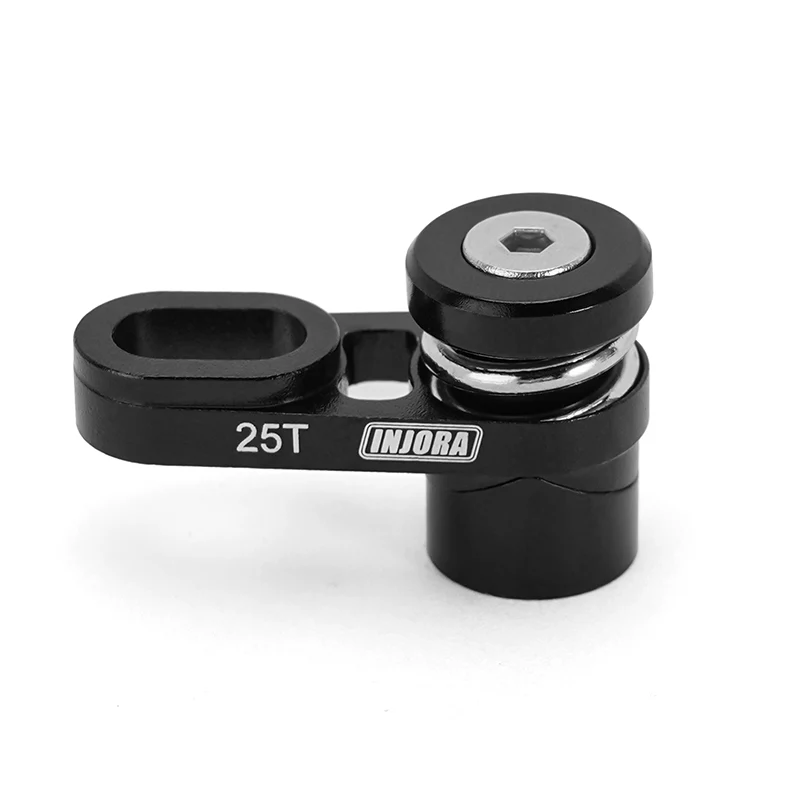

INJORA 25T Aluminum Transmission Shift Unloading Servo Horn for SCX10 PRO

INJORA 25T Aluminum Transmission Shift Unloading Servo Horn for 1/10 RC Crawler Axial SCX10 PRO Upgrade
Suit For: SCX10 PRO
Features:

• CNC machined and black anodized
• High precision and fine workmanship
• Segmented spring structure desgin educes the strain on the components and promotes longevity of servo

Servo Horn Specifications:

• Material: Aluminum
• Color: Black
• Weight: 4g (0.14oz)

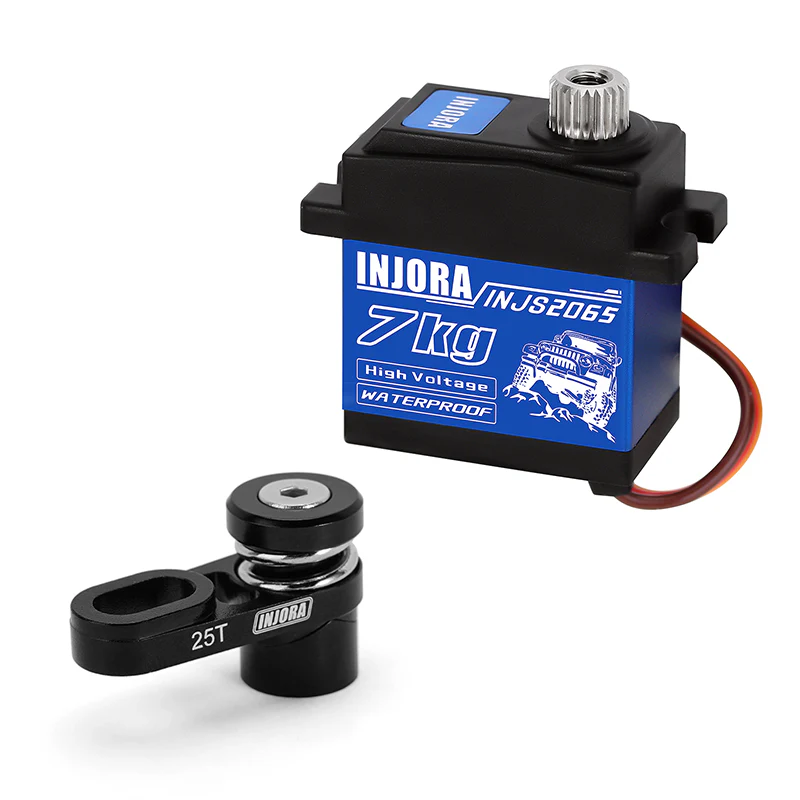

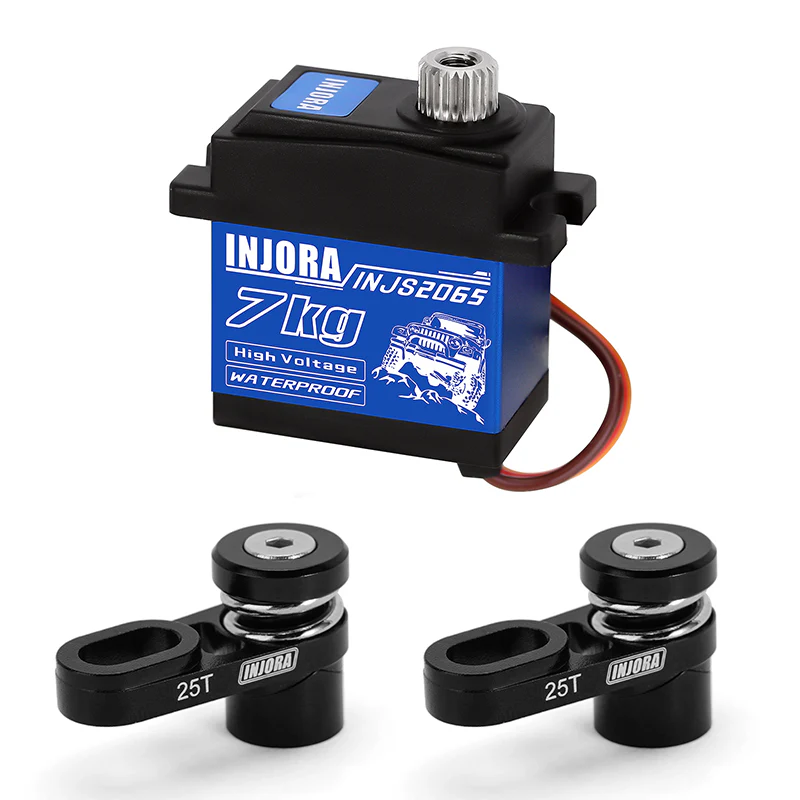

INJS2065 Servo Specifications:

• Dead band: 2μs
• Neutral Position: 1500μs/330hz
• Motor: Core Motor
• Remote Control Angle: 90-120°±2°
• 500-2500μs Angle: 180°±2°
• Voltage Range: 4.8V-8.4V
• Operating Speed(6.0V): 0.09''/60°
• Operating Speed(8.4V): 0.06''/60°
• Stall Torque(6.0V): 6.0 kg.cm/83.3oz.in
• Stall Torque(8.4V): 7.0 kg.cm/97.2oz.in
• Dimensions: 23*13*25.8mm
• Weight: 20g
• Connector Wire Length: JR 300 mm
• Bearing: 1BB
• Packing Weight: 28g
• Package size: 36X23X38mm
• Spline: Φ5.9 25T
