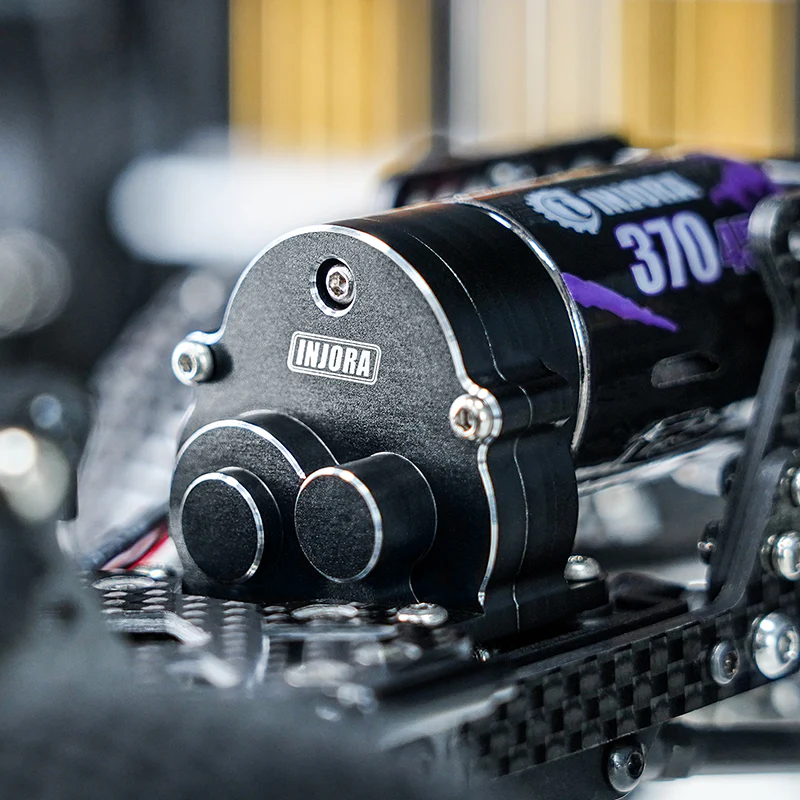

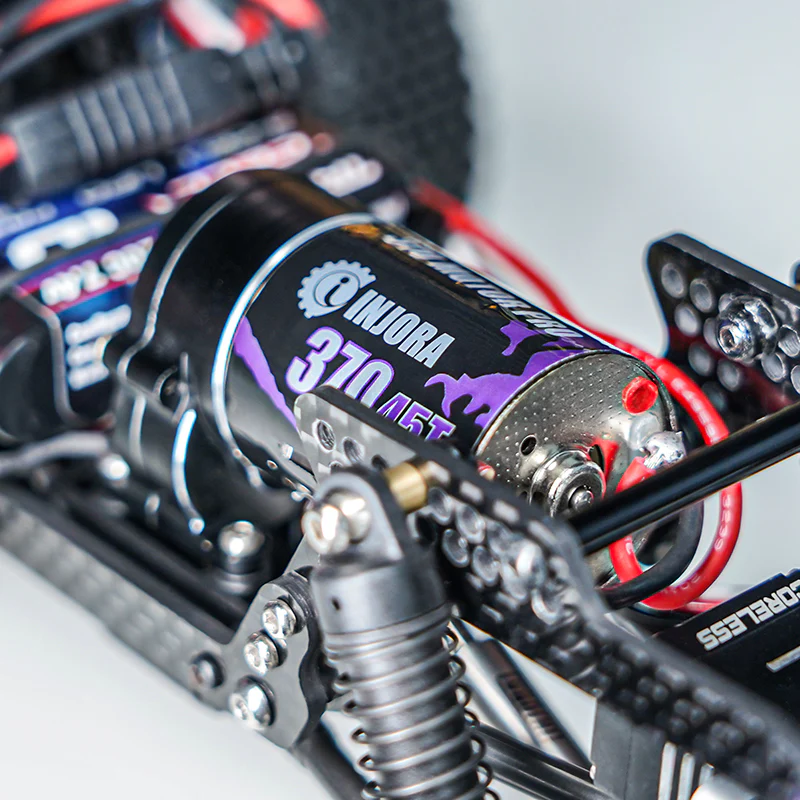

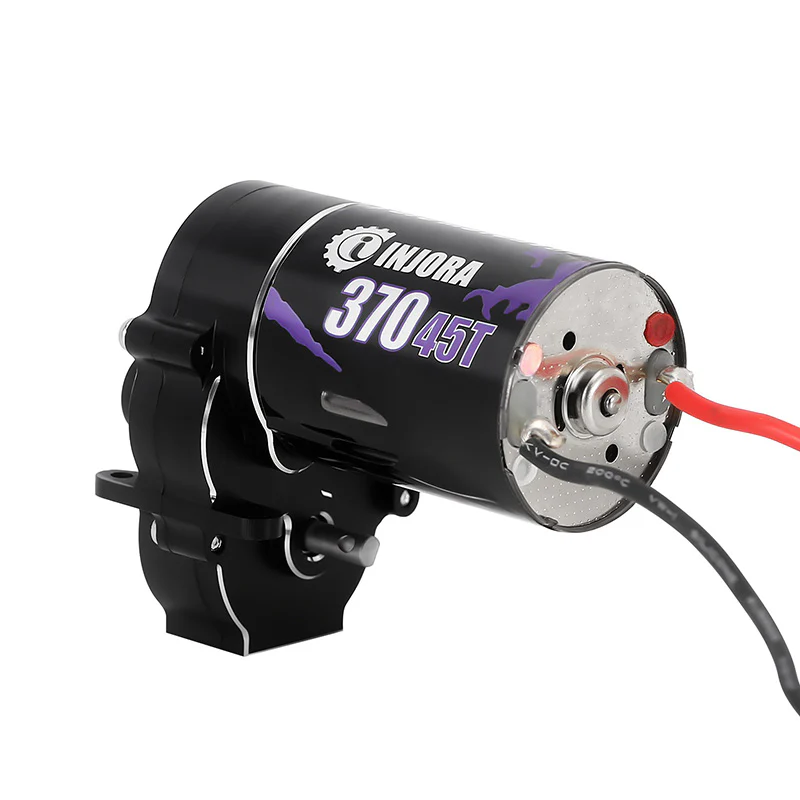

INJORA 370 Brushed Motor with Aluminum Transmission for 1/18 TRX4M
INJORA CNC Aluminum Complete Transmission with 370 Brushed Motor 45T for 1/18 RC Crawler TRX4M Upgrade
Note:
- Not compatible with the stock TRX4M ESC as it is too weak! The 370 motor requires more power than the stock ESC can administer. This motor pinion is intended for use with the included 24.4:1 gear set only. Do not use with other gear ratios.
- Compatible with INJORA MB100 ESC, you can even use 3S battery when used with MB100 ESC
Features:
- Motor waterproof rating: IPX6 (It can run in the rain, or run underwater for a while.)
- Extremely high-strength neodymium magnets for excellent torque
- Stronger drag brake and torque delivery than stock motors
- Taller Transmission to fit 370 motors
- CNC aluminum machined transmission housing
- Includes ball bearings
- Come with 24.4:1 stainless steel gears (Underdrive 32%)

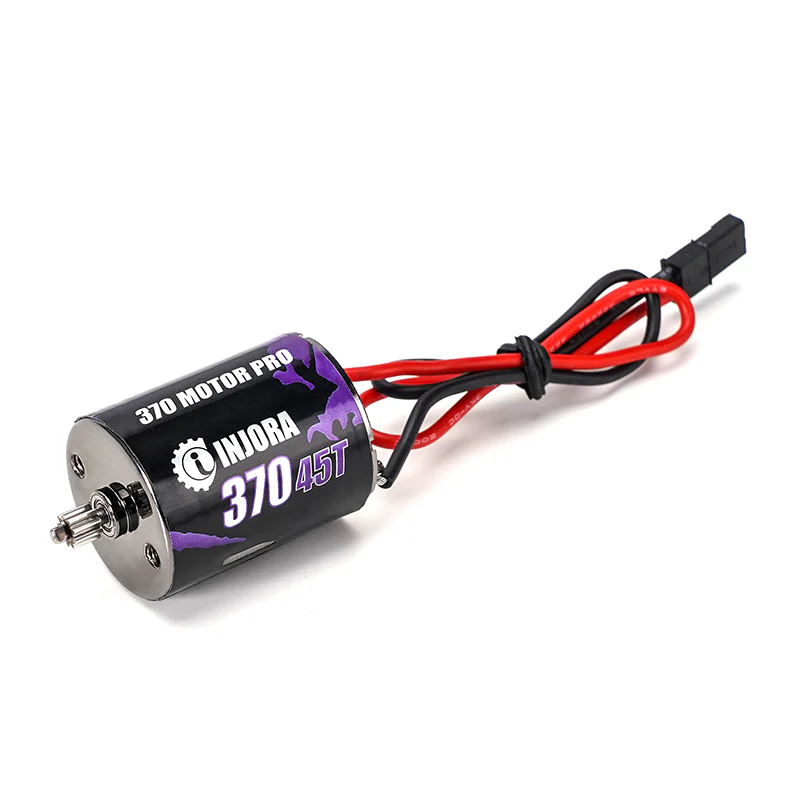

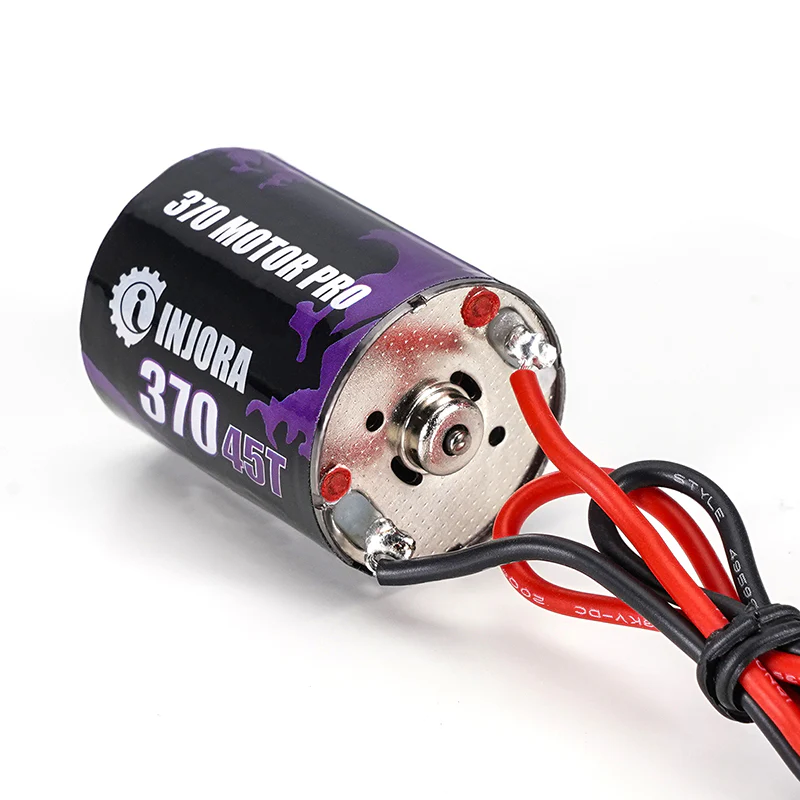

370 Motor Specifications:
-
Turn: 45T
-
Rated Voltage: 7.4V
-
Total Length: 42.7mm (1.68in)
- Motor Diameter: 24.4mm (0.96in)
-
Motor Magnets: Neodymium magnets (Higher Torque)
-
Pinion Material: Stainless Steel
-
Pinion: 9T 0.4mod (Stock TRX4M: 11T)
-
Weight: 53g
-
At No Load Speed: 20000±10％rpm
-
No Load Current: ≤650mA
Transmission Specifications:
- Housing Material: Aluminum
- Gears Material: Stainless Steel
- Color: Black
- Weight: 36g
- Internal Gears: 24.4:1 gear set, underdrive 32%

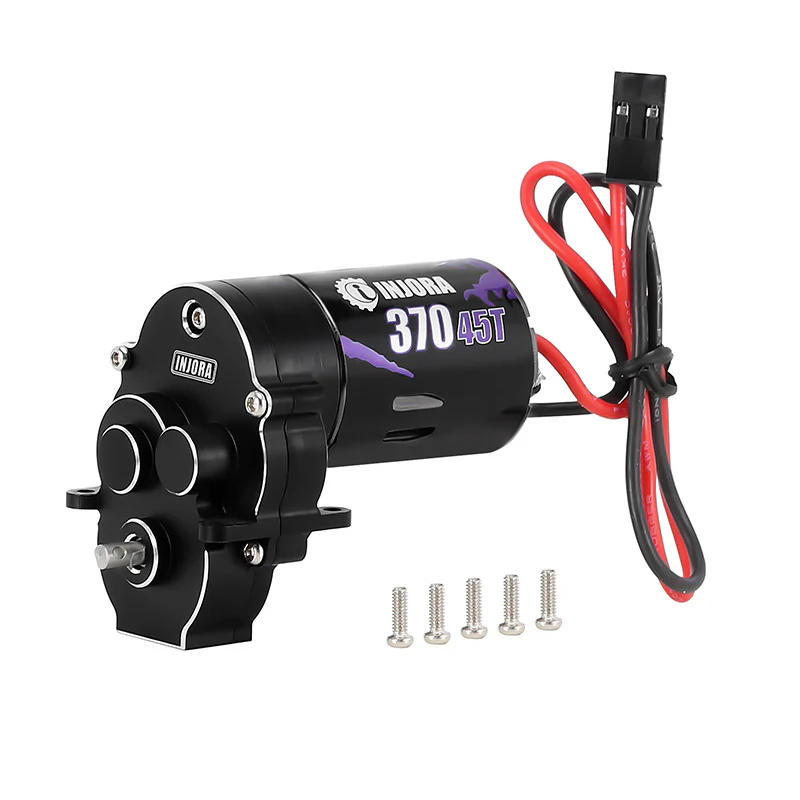

Package List:
1 * 370 Brushed Motor
1 * Complete Transmission
