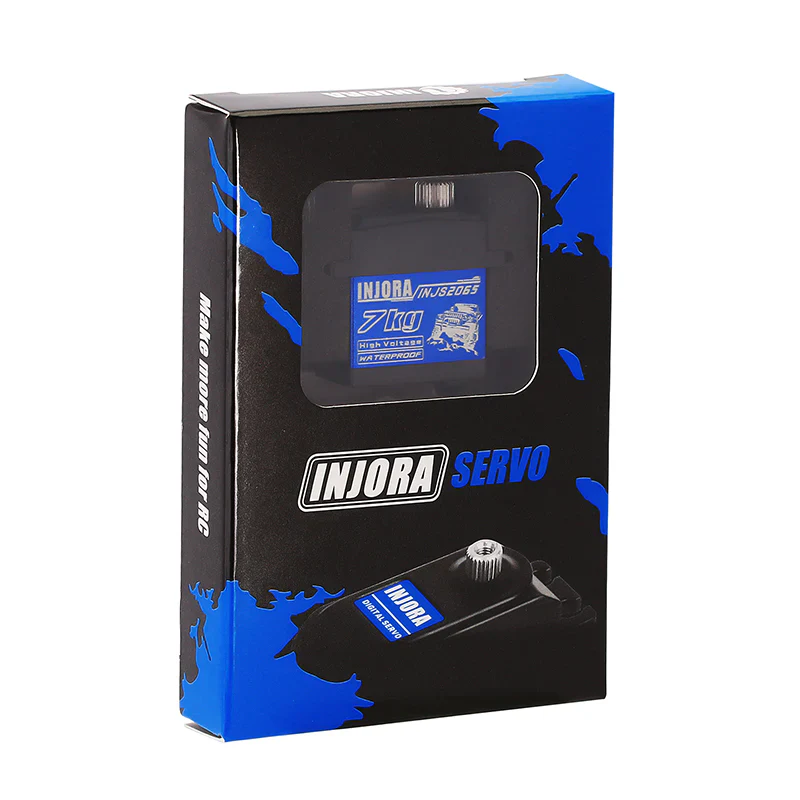

[US Warehouse] INJORA 7KG High Voltage Waterproof 2065 Digital Servo with Mount for 1/18 TRX4M

INJORA 7KG High Voltage Waterproof 2065 Digital Servo with Mount for 1/18 Redcat Ascent-18

Note: The servo horn is only compatible with INJORA INJS2065 Servo

Features:

• High voltage and digital 2065 servo

• IP66 waterproof design

• Stainless steel gears and lower noise

• Servo mount is two-position adjustable design

Servo Specifications:

• Item Name: INJS2065 Servo
• Dead band: 2μs
• Neutral Position: 1500μs/330hz
• Motor: Core Motor
• Remote Control Angle: 90-120°±2°
• 500-2500μs Angle: 180°±2°
• Voltage Range: 4.8V-8.4V
• Operating Speed(6.0V): 0.09''/60°
• Operating Speed(8.4V): 0.06''/60°
• Stall Torque(6.0V): 6.0 kg.cm/83.3oz.in
• Stall Torque(8.4V): 7.0 kg.cm/97.2oz.in
• Dimensions: 23*13*25.8mm
• Weight: 20g
• Connector Wire Length: JR 300 mm
• Bearing: 1BB
• Packing Weight: 28g
• Package size: 36X23X38mm
• Number of teeth: 25T

• Spline: Φ5.9 25T

Servo Mount Specifications:

• Part Number: ASC18-13
• Material: Brass

• Weight: 10g

Servo Horn Specifications:

• Material: Brass

• Weight: 2.3g
• Screw hole size: M2
