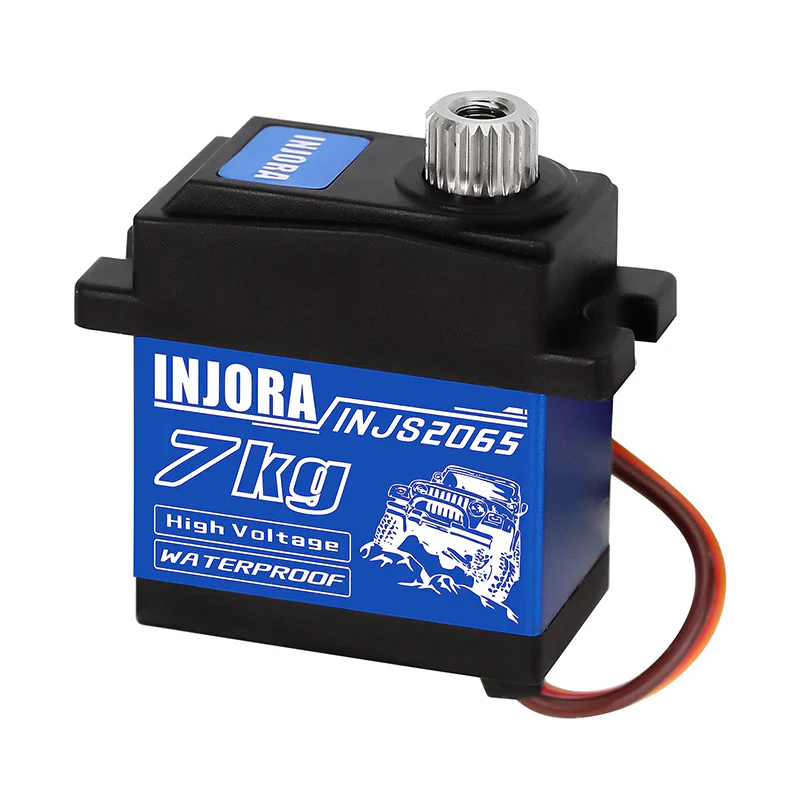

INJORA 7KG Waterproof 2065 Servo with Mount & Horn for 1/24 Axial SCX24 Upgrade

INJORA 7KG Waterproof 2065 Servo with Mount & Horn for 1/24 Axial SCX24 Upgrade

Compatible with:

• Axial SCX24 stock axles (Install with spacers)
• All INJORA SCX24 axles
• Not compatible with the SCX24 stock chassis, as the servo may interfere with the frame.

Features:

• High voltage and digital 2065 servo
• IP66 waterproof design
• Stainless steel gears and lower noise
• CNC machined aluminum servo mount and horn

INJS2065 Servo Specifications:

• Output Spline: 25T
• Dead band: 2μs
• Neutral Position: 1500μs/330hz
• Motor: Core Motor
• Remote Control Angle: 90-120°±2°
• 500-2500μs Angle: 180°±2°
• Voltage Range: 4.8V-8.4V
• Operating Speed(6.0V): 0.09''/60°
• Operating Speed(8.4V): 0.06''/60°
• Stall Torque(6.0V): 6.0 kg.cm/83.3oz.in
• Stall Torque(8.4V): 7.0 kg.cm/97.2oz.in
• Dimensions: 23*13*25.8mm
• Weight: 20g
• Connector Wire Length: JR 300 mm
• Bearing: 1BB
• Packing Weight: 28g
• Package size: 36*23*38mm

• Spline: Φ5.9 25T

Brass Servo Mount Specifications:

• Part Number: SCX24-192BR
• Material: Brass
• Weight: 9.9g
